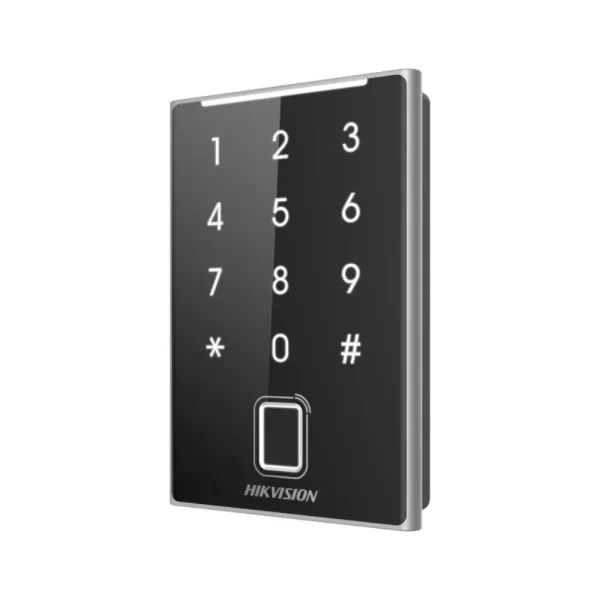

DS-K1109DKFB Card Reader
- Supports RS-485 and Wiegand (W26, W34) protocol
- Supports reading DESfire card, Felica card and M1 card
- Multiple authentication methods, including card, password and fingerprint
- Supports bluetooth module
- Tamper-proof function
- Max. 5000 fingerprint capacity
- Description
Description
Interface
- TAMPER1
- RS-4851
- Wiegand1
Capacity
- Fingerprint capacity5000
Authentication
- Card typeM1 card;DESfire : card;Felica card
General
- Power supply12 VDC
- Power consumption
With load: ≤ 14 w
Without load: ≤ 4 w
- Working temperature-40 °C to 65 °C (-40 °F to 149 °F)
- Working humidity0 to 90% (no condensing)
- Protective levelIP65
- Dimensions125 mm × 84.5 mm × 18 mm (4.92″ × 3.33″ × 0.71″)
- Installation: Wall mounting
- ≤ 1 kg (2.20 lb)
- Buzzer: Support
