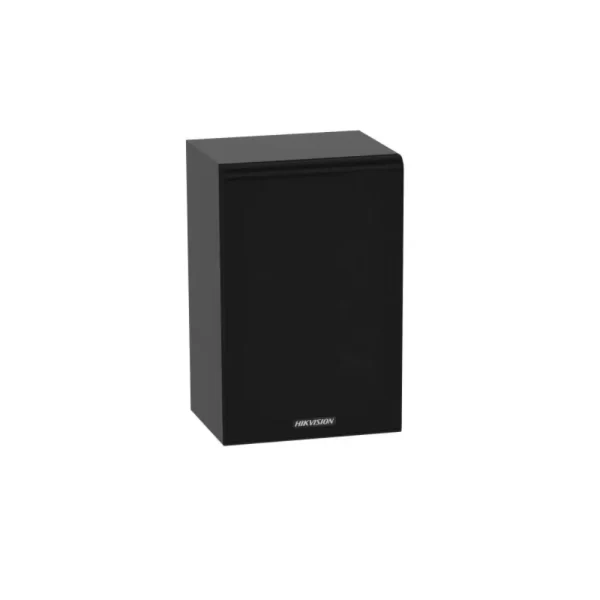

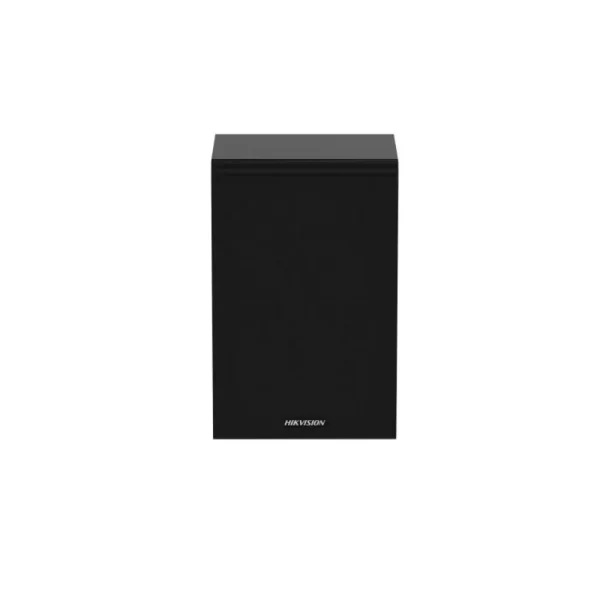

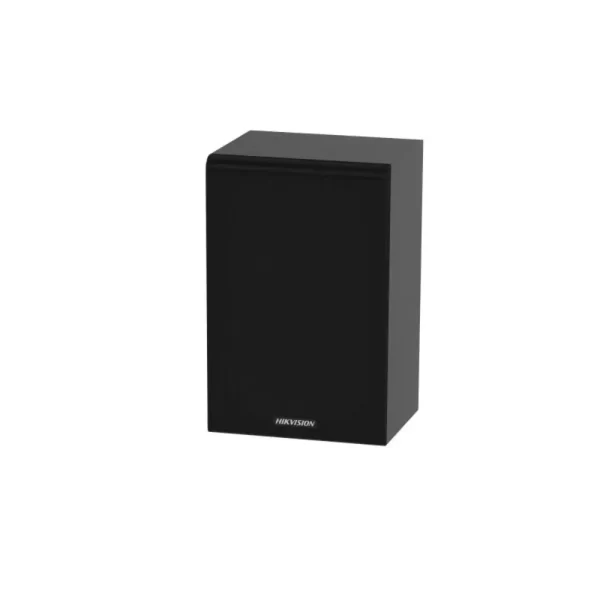

DS-QAZ1110G1-B Network Cabinet Speaker 10W

Microphone

• Type: MEMS
• Amount: 2
• Frequency Response: 100 Hz to 20 kHz
• Sensitivity: -42 dBV/Pa
• Sampling Rate: 48 kHz
• Quantization Bits: 16 bit

Speaker

• Rated Power: 10 W
• Impedance: 8 Ω
• Max. Acoustic Pressure: 98 dBSPL
• Sensitivity: (1 m, 1 W)90 dB
• Direction: All directions
• Frequency Response: 100 Hz to 20 kHz
• SNR: 83 dB
• Speaker Unit: Full frequency 5.25′′ × 1
• Coverage Angle

  Horizontal: 105°

  Vertical: 103°

Function

• Audio Algorithm: AEC、AGC、ANS、DRC
• Audio Bit Rate

  G.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps)

  Sampling bit width: 16 bits

• Audio File Format: MP3, WAV
• NTP Timing: Support
• Broadcast: Regular broadcast, live broadcast, emergency broadcast
• Two-Way Audio: Support
• Speech Synthesis: Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French

Network

• Network Protocol: IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
• Interface Protocol (API)ISAPI, ISUP, SIP, RTP,ONVIF
• Client: Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone

Communication

Communication Method: Support wired network and Bluetooth communication

Interface

• Ethernet Interface: RJ45 10 M/100 M Adaptive Ethernet port × 1
• Local Storage: Built-in 4 GB EMMC (Audio file storage is 1 GB.)
• APIISAPI, ISUP, SIP,ONVIF
• Audio In

  3.5 mm audio interface × 1

  Voltage Input × 1，COM 100 V

• Audio Out: Fixed resistance output × 1，phoenix terminal，8 Ω
• LED Indicator

  Green light on: normal

  Green light flash: intercom in progress

  Red light on: start or network disconnection

  Red light flash: upgrading

• Reset: Support
• Volume Knob: Support

General

• Power: 24 VDC/1.5 A
• Material: Wooden
• Operating Temperature-10 °C to 50 °C(14 °F to 122 °F)
• Operating Humidity＜90% (No condensation)
• Dimension180.6 mm × 156 mm × 280 mm(7.11″ × 6.14″ × 11.02″)
• Package Dimension355 mm × 265 mm × 240 mm(13.98″ × 10.43″ × 9.45″)
• Approx. 2.5 kg (5.51 lb.)
• Color: Black
• With Package Weight: Approx. 3.72 kg (8.2 lb.)
• Packing List

  Device × 1

  Adapter × 1

  Screw pack × 1

  Installation sticker × 1

  Regulatory Compliance and Safety Information × 1

• Language41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese
• Bluetooth: Bluetooth 5.0, 10 m

Approval

• RF

  CE-RED: EN 301489-1 V2.2.3 (BT or 2.4G), EN 301489-17 V3.2.4 (BT or 2.4G), EN 300 328 V2.2.2 (BT or 2.4G), EN62311 2020(BT or 2.4G)

  RCM: EN 300 328 V2.2.2 (BT or 2.4G), AS/NZS 2772.2:2016+A1:2018, ARPANSA RPS S-1 Radiation Protection Series S-1 (Rev.1), ARPANSA RPS S01 Advisory Note

  IC ID: RSS-247(BT or 2.4G)

  ANATEL: Resolution No. 680/2017,Act No. 14448/2017,Act No. 950/2018,Act No. 1120/2018

• EMCCE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
• Safety

  CB: IEC 62368-1:2014

  CE-LVD: EN 62368-1:2014/A11:2017

• Environment

  CE-RoHS: 2011/65/EU

  WEEE: 2012/19/EU

  Reach: Regulation (EC) No 1907/2006
