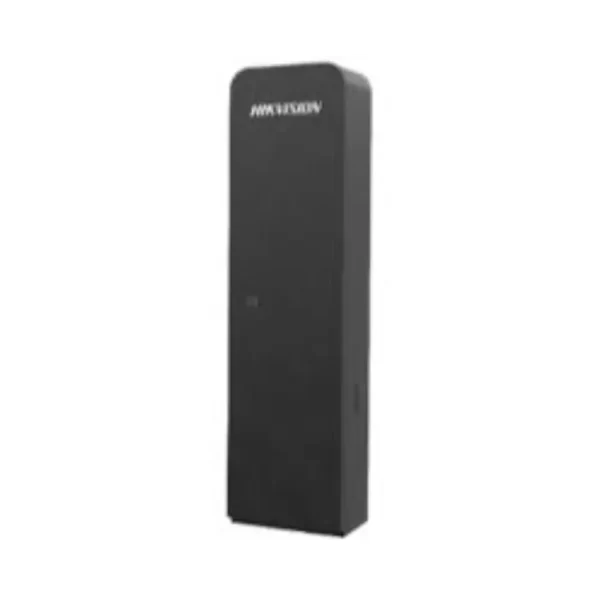

DS-TMG320-LL Series Barrier Gates
- Supports convenient side installation with compact structure.
- Adopts small DC brushless motor with low noise to increase output torque and realize precise intelligent control.
- Supports multiple anti-fall modes such as IR, vehicle detectors, and radars.
- Delayed boom pole closing. Supports 1 to 600 seconds.
- Supports Bluetooth connection with smartphone app for barrier gate configuration.
- Standardized chuck, one chuck fits all types of boom pole
- Description
Description
Barrier Housing
- Barrier Housing Material :SGCC
- Barrier Housing Thickness: 1.5 mm
- Barrier Housing Color :Black background with silver pattern
- Boom Pole Installation Height :880 mm
- Body Indicators :without Indicator
- Barrier Gate General
- Matched Boom Pole Type
DS-TMG320-ML/DS-TMG320-MR: DS-TMG001-3D(3m octagonal), DS-TMG001-3D(4m octagonal), DS-TMG001-3D(2.6-4m), DS-TMG002-3D(1.5+1.5m), DS-TMG001-6L(3m)(1.4mm), DS-TMG002-6L(1.5+1.5m)
DS-TMG320-LL/DS-TMG320-LR: DS-TMG001-3D(3.6-6m), DS-TMG002-3D(2+2m), DS-TMG002-3D(2.5+2.5m), DS-TMG001-6L(4m)(1.4mm), DS-TMG002-6L(2+2m)
- Rising Speed :3m: 3s, 4m: 3.5s, 2.6-4m telescopic: 4s, 1.5+1.5 m folding: 3s, 3.6-6 m telescopic: 6.5s, 2+2 m folding: 4s, 2.5+2.5 m folding: 5.5s, 3m light: 3s, 4m light: 3.5s, 1.5+1.5m light folding: 3s, 2+2m light folding: 4s
- Falling Speed :3m: 3s, 4m: 3.5s, 2.6-4m telescopic: 4.5s, 1.5+1.5 m folding: 4s, 3.6-6 m telescopic: 7.5s, 2+2 m folding: 6s, 2.5+2.5 m folding: 7s, 3m light: 3s, 4m light: 3.5s, 1.5+1.5m light folding: 3s, 2+2m light folding: 4.5s
- Boom Pole Direction
DS-TMG320-ML/DS-TMG320-LL: left
DS-TMG320-MR/DS-TMG320-LR: right
- Boom Pole Falling Delay: 1~600s
- Motor Type: DC Brushless Motor
- Number of Cycles: 2500000
- Working Voltage :24VDC
- Remote Controller Frequency :433.5 MHz
- Max. Number of Remote Controller Binding:64
- Consumption: 100W
- Temperature and Humidity :Temperature: -30 °C to 70 °C (-22 °F to 158 °F)
- Rising Boom Pole for Poweroff: Optional, order emergency barrier-lifting module independently
- Barrier Gate
- Duty Cycle :100%
- Interface
- Rising to Limit: 1 group
- Falling to Limit:1 group
- Open:1 group
- Close:1 group
- RS-485:1 group
- Stop:1 group
- IR/Vehicle Detector/Radar:1 group
- LED Indicators:1 group
-
Approval
- RF
CE-RED
EN 61000-3-3: 2013+ A1:2019+A2:2021
EN IEC 61000-3-2: 2019+A1:2021+A2:2024
EN 301 489-1 V2.2.3
EN 301 489-3 V2.3.2
EN 301 489-17 V3.3.1
EN 300 328 V2.2.2
EN 300 220-1 V3.1.1
EN 300 220-2 V3.1.1
EN IEC 62311:2020
- EMC
CE-EMC
EN 50130-4: 2011+A1:2014
EN 55032: 2015+A11:2020+A1:2020
EN 55035: 2017+A11:2020
EN 61000-3-3: 2013+ A1:2019+A2:2021
EN IEC 61000-3-2: 2019+A1:2021+A2:2024
- Security
CE-LVD
EN 62368-1: 2014 + A11: 2017
EN IEC 62368-1:2020+A11:2020
- Environment :ROHS
- Protection :I:P54
-
General
- Power Supply:110/220 VAC(switchable)
- Bluetooth :supported
- Remote Control Distance:30m
- Dimensions:1040 × 340 × 298.3 mm (40.94 × 13.39 × 11.74 inch)
- 37.79 kg (83.31 lb.)
- Dimensions (with Package):1143 × 436 × 403mm(45 × 17.17 × 15.87inch)
- Weight (with Package):40.9 kg (90.17 lb.)
