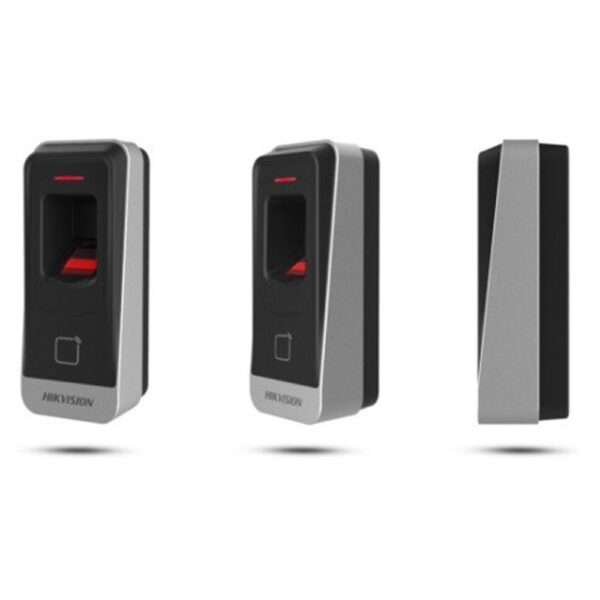

Fingerprint Reader – DS-K1201AEF
- A group of messy code encrypted data for the security of fingerprint storage
- Supports RS-485 communication with 19200bps-N-8-1 transmission rate. There are CRC test for the protocol
- Supports EM card reading
- Card induction distance is 30 mm to 100 mm
- Supports multiple authentication modes (card, fingerprint, and card + fingerprint)
- Optical CMOS fingerprint module. The characters of the fingerprint can be exported to the card reader
- Max. 5000 fingerprints storage
- Adopts the optical fingerprint module, supporting 1:N mode (fingerprint, card + fingerprint) and 1:1 mode (card + fingerprint)
- Fingerprint comparison time: 1:1 ≤ 1 s, 1:1000 ≤ 1 s; FRR ≤ 0.01%, FAR ≤ 0.001%
- The communication circuit is designed with optical coupling isolation and a noise suppression function
- Built-in buzzer for status indication
- Accurate data and time display provided by the built-in electronic clock and watchdog program to ensure the basic function of the terminal
- Tamper-proof function
- Description
- المصادر
Description
Interface
- TAMPER: 1
Authentication
- Fingerprint module: Optical fingerprint module
- Fingerprint comparing mode: 1:1/1:N
- Card type: EM card
General
- Power supply: 12 VDC ± 10%
- Power consumption: ≤ 1.6 W
- Working temperature: -40 °C to 70 °C (-40 °F to 158 °F)
- Working humidity: 10% to 90% (no condensing)
- Dimensions: 62 mm × 132 mm × 44 mm (2.44″ × 5.20″ × 1.73″)
- Installation: Surface mounting
- Buzzer: Support
