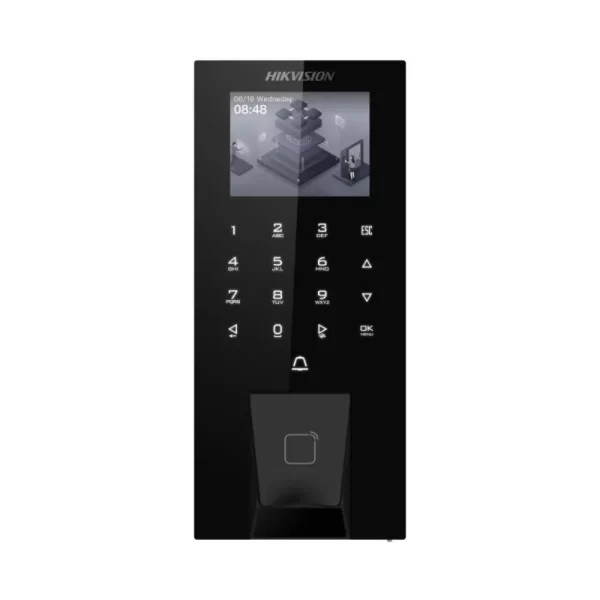

DS-K1T807EBFWX-E1 Value Fingerprint Terminal
Value Fingerprint Terminal
- 2.4-inch LCD screen
- Multiple authentication methods, including fingerprint, card (EM card), and PIN, etc.
- Max. 5000 cards, 5000 fingerprints and 150,000 events
- Supports ISAPI and ISUP 5.0 protocols
- Configuration via web client
- Supports wired network and Wi-Fi (AP mode)
- Supports wiring with secure door control unit or card reader via RS-485
- Supports powered by 12 VDC or PoE and supports powering for device and door lock
- Description
Description
- Fingerprint Access Terminal
-
System
- Operating system :Linux
-
Display
- Screen size :2.4 inch
- Type :LCD
- Resolution:320 × 240
-
Audio
- Audio output :Support
-
Network
- Wired network :Support
- Wi-Fi :Support, 2.4 G, 802.11b/g/n
- Bluetooth :Support
Interface
- Network interface:1 RJ-45, 10/100 M self-adaptive
- Lock control:1
- Exit button:1
- Door contact input:1
- Alarm input:2
- TAMPER:1
- Alarm output:1
- RS-485:1 RS-485 (Half duplex, HIKVISION)
- Wiegand:1 Wiegand (W26, W34)
- USB:1
- PoE :Support
-
Capacity
- Fingerprint capacity:5000
- Card capacity:5000
- Event capacity:150,000
-
Authentication
- Card type :EM card
- Fingerprint module :Optical fingerprint module
- Fingerprint comparing mode:1:1 and 1:N
-
General
- Power supply: 12 VDC
- Power consumption: ≤ 6 W
- Working temperature:-30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity:0 to 90% (No condensing)
- Language :English, Spanish (South American), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese(Brazil), Turkish, Ukrainian, Italian, French
